A field guide to camera-LiDAR annotation alignment

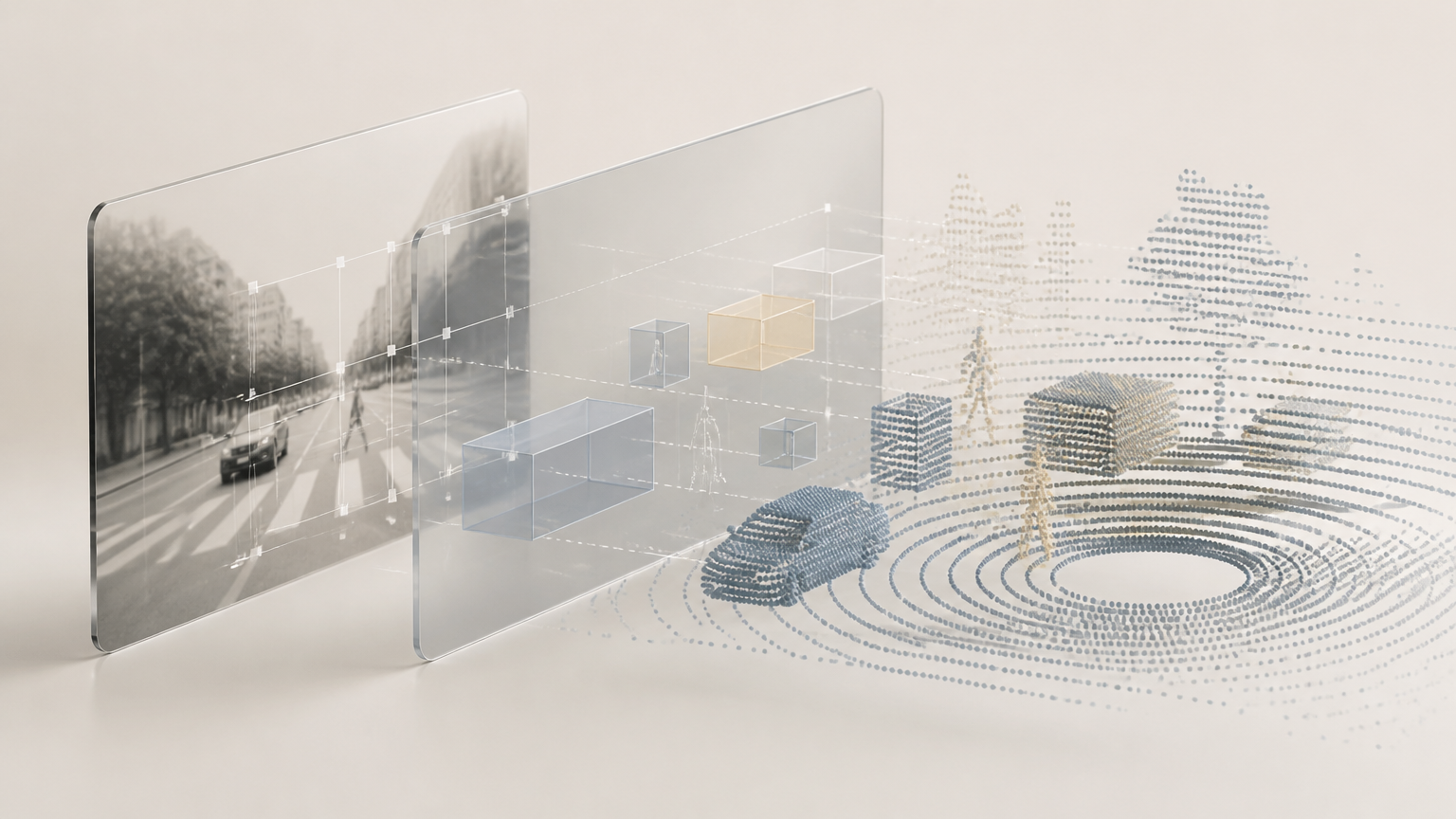

Camera-LiDAR annotation can look consistent in each sensor’s view and still be wrong as fused ground truth. A box may fit an object in the image while its projected point cloud appears offset. A frame pair may look plausible while representing different moments. If annotators are asked to resolve those cases by eye, the dataset can encode guesses as geometry.

The practical fix is to make alignment rules part of the annotation protocol. Record which coordinate frames, timestamps and projection conventions apply to a batch. Then give annotators a clear way to flag a mismatch without silently correcting it. This matters whether the work is called 3D LiDAR annotation, 3D point-cloud annotation or LiDAR camera calibration annotation: annotation can describe the observed data, but it should not conceal an unresolved sensor setup.

Separate calibration errors from label errors

Before labeling begins, the dataset owner should provide the approved camera-to-LiDAR transform, camera intrinsics, image dimensions and timestamp convention for the capture. If a batch uses more than one sensor rig or configuration, identify which records belong to each setup. The protocol should also state whether the supplied transform is fixed for the batch or varies by record.

These details establish the projection annotators will see. They do not prove that the sensors were calibrated correctly. If projected points are consistently displaced from image objects, the first question is whether the calibration and frame metadata are valid—not whether the label should be dragged until it appears to fit. A stable offset across many objects can indicate a systematic problem. A mismatch limited to an object or moment may have another cause, such as occlusion, motion or sparse returns.

Set acceptance tolerances with the model task and capture conditions in mind. A small alignment difference may matter for a close-range interaction task and matter less for a distant scene label. The protocol should state who can approve a tolerance change and how affected records are marked. Do not make the threshold an undocumented judgment call for each annotator.

Define the time relationship, not just the frame number

“Use the nearest frame” is not a complete synchronization rule. Specify which timestamp is authoritative, how image and point-cloud times are paired, and what to do when the difference exceeds the project’s accepted tolerance. Include the relevant timestamp values or a traceable pairing identifier in the annotation record where the format allows.

Give annotators distinct outcomes for a valid pair, a visibly stale pair and a pairing that cannot be judged. A moving object may occupy different positions in two correctly recorded sensor streams if the captures are not simultaneous. That is not an invitation to invent a corrected location. Mark the pair for review or exclusion under the project’s rules, and retain the reason. The engineering team can then investigate clock offsets or capture metadata without confusing a synchronization defect with an object-label defect.

Choose an annotation workflow that matches the target

There are three workable approaches, with different trade-offs:

• Independent 2D and 3D labels: Teams label images and point clouds separately. This suits projects where each sensor has its own evaluation target, or where fusion is not part of the training task. It is easier to isolate sensor-specific label quality, but it does not establish that corresponding labels agree across views.
• Projection-led review: Annotators label in one modality and inspect the result in the other using the approved transform. This suits teams that need cross-view checks but have a clear source of truth for each label. It can expose mismatches, but reviewers need rules for cases where projection is ambiguous or the object is partly occluded.
• Joint sensor-fusion labeling: Reviewers consider image and point-cloud evidence together and produce labels intended for a fused model. This suits tasks that depend on both modalities. It demands more explicit guidance about which sensor supports each attribute, and how to record disagreement or missing evidence.

None is universally best. A team comparing perception in two separate sensor pipelines may gain little from joint annotation. A team training a fused model needs cross-sensor consistency checks, but should not force agreement where the evidence does not support it.

Make disagreement reviewable

Use a small, representative pilot to test the protocol across ordinary scenes and known hard cases: partial occlusion, reflective or sparse surfaces, motion, and objects near image or point-cloud boundaries. Ask reviewers to record mismatch categories separately from label corrections. Track how often a case is caused by unclear instructions, missing metadata or an upstream alignment issue. Revise the rules before scaling if those categories recur.

For teams weighing annotation methods, the useful comparison is not just labels per hour. It is accepted labels, review burden and the types of errors each workflow leaves behind. A prior discussion of how to compare point-cloud labeling approaches makes the same operational point: measure the work that survives review, not just the first output.

Match the vendor scope to the problem

A general annotation provider may suit teams with stable sensor metadata and a well-tested protocol. A specialist in point clouds may be a better fit when 3D labels are the main deliverable. A multimodal data partner is relevant when the scope includes image, video and LiDAR annotation, or collection as well as labeling. In each case, ask for a sample against your own acceptance criteria and inspect how exceptions are reported.

XYNTRIQ lists image, video and LiDAR annotation, including point-cloud labeling, and describes a sample-first process with guideline-based work and multi-tier QA. That makes it an option for teams whose scope fits those services. The listed facts do not establish that any annotation provider can repair camera calibration or clock synchronization. Keep those engineering responsibilities explicit, and begin production labeling only when the projection and pairing rules are stable enough for annotators to apply consistently.
